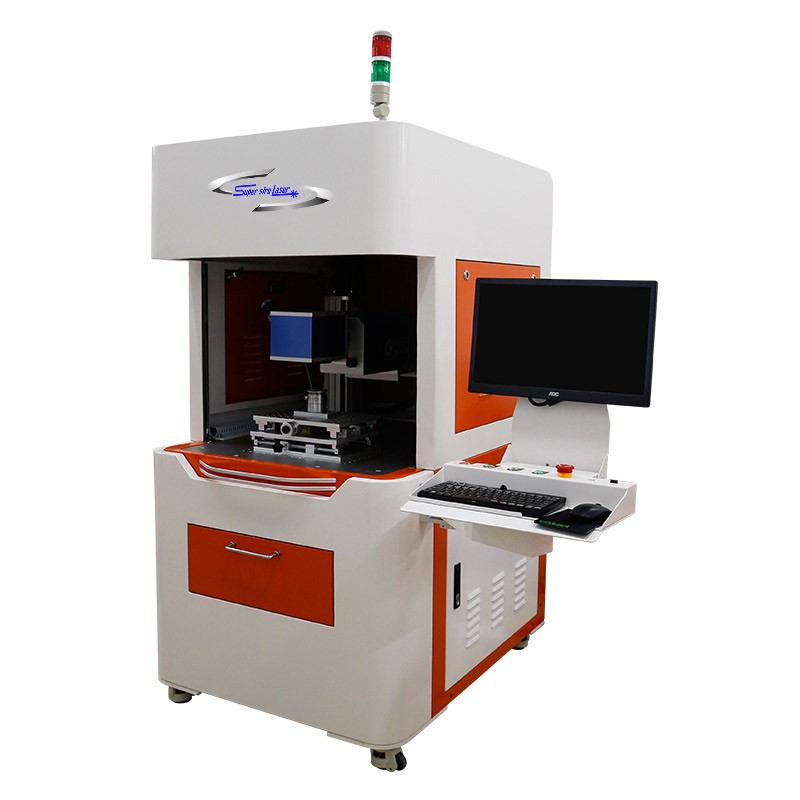

CO2-laser-marking-machine
The core optical components of CO2 series laser marking machine use CO2 radio frequency fiber laser, the laser wavelength is 10.64μm, which belongs to the mid-infrared frequency wave band, and the CO2 fiber laser has relatively high power and relatively high photoelectric conversion rate.
Product Introduction
The Co2 fiber laser uses CO2 gas as the working medium, and charges CO2 and other auxiliary gases into the discharge tube. When a high voltage is applied to the electrode, a glow discharge is generated in the discharge tube, and the gas molecules can release laser light; the released laser energy is expanded. After the beam is focused and deflected by a scanning galvanometer, laser processing can be performed.
The marking software runs on WINDOWS system, with multi-language interface, compatible with file formats of AUTOCAD, CORELDRAW, PHOTOSHOP and other software, such as PLT, PCW, DXF, BMP, etc., and can also directly use SHX, TTF font library. Graphics can be freely designed by computer, easy to operate, and the power is controlled by software and can be continuously adjusted.
The marking software operate on Windows platform, with Chinese interface, compatible with file formats of AUTOCAD, CORELDRAW, PHOTOSHOP and other software, such as PLT, PCW, DXF, BMP, etc., and can also directly use SHX, TTF font library. Graphics can be freely designed by computer, easy to operate, and the power is controlled by software and can be continuously adjusted.
Core Features
1.High precision marking, fast speed, engraving depth can be freely controlled.
2.The laser power can be applied to a variety of non-metallic products for carving and cutting.
3.No consumables, low processing costs - the operating life of the laser is up to 20000-30000 hours.
4. Marking clear, wear-resistant, carving and cutting efficiency, environmental protection, energy saving
Technical Parameter | |||
No. | Item | Parameter | |
1 | Model | ML-MF-TY-02-HW20 | |
2 | Laser Power | 20W/30w | 50w/100W |
3 | Laser Wavelength | 1064nm | |
4 | Repeat Frequency | 20-100KHz | |
5 | Engraving Range | <15ns@30KHZ | |
6 | Minimum Line Width | 70*70mm-300*300mm | |
7 | Repeatability | ≤7000mm/s | |
8 | Total Power | 0.15mm | |
9 | Engraving Depth | ±0.002 | |
10 | Minimum Character | Single Phase AC 220V/50Hz-60Hz | |
11 | Engraving Line Speed | 500W | |
12 | Electricity Demand | 600*900*150MM | |
13 | Optical System Size | 80KG | |
14 | Control System | Win10 | |
15 | Cooling System | Built-in Air Cooling | |
Application Scenarios
Craft gifts, furniture, leather clothing, advertising brand, model making, food packaging, electronic components, pharmaceutical packaging, printing plate making, nameplates, etc. Applicable materials are mainly bamboo and wood products, paper, cloth leather, plexiglass, epoxy resin, acrylic, polyester resin and other non-metallic materials.
